Lifting Shackles
Lifting shackles provide a strong and reliable connection between loads and lifting equipment, allowing chains, slings, wire ropes and other lifting accessories to be connected securely.
We supply lifting shackles in a wide range of designs, working load limits and pin configurations to suit different lifting applications. Our range currently includes a selection of Green Pin shackles, with additional manufacturers and specialist solutions being added to our range.
From general-purpose bow and dee shackles through to heavy-duty and specialist designs, we can help you select the right shackle for your load, lifting arrangement and working environment.
We supply lifting shackles in a wide range of designs, working load limits and pin configurations to suit different lifting applications. Our range currently includes a selection of Green Pin shackles, with additional manufacturers and specialist solutions being added to our range.
From general-purpose bow and dee shackles through to heavy-duty and specialist designs, we can help you select the right shackle for your load, lifting arrangement and working environment.
Contact usView on Webshop
Secure Connections for Lifting Applications
Lifting shackles provide a removable connection between lifting equipment and the load, allowing chains, slings, wire rope and other lifting accessories to be connected securely.
Shackles are available in different shapes, capacities and pin configurations to suit different lifting arrangements. Bow shackles provide a wider body for applications involving multiple connections, while dee shackles are generally suited to more direct, single-leg connections.
We supply shackles from established manufacturers, with options for general lifting, heavy-duty applications and specialist requirements.
Secure Load Connection
Strong, removable connection points for lifting equipment and loads.
Wide Range of Designs
Bow, dee and specialist shackles for different lifting configurations.
Different Pin Configurations
Screw pin, safety bolt and fixed-nut designs for different applications and levels of security.
Lifting Equipment
PRODUCT RANGE
Our Lifting Shackles
We supply a growing range of lifting shackles from established manufacturers, providing different designs, working load limits and configurations for a wide range of lifting applications. Our current range includes Green Pin shackles, covering bow, dee, heavy-duty and specialist designs, with additional products and manufacturers being added to our range.
Explore the lifting shackles currently available below, or contact our team if you require a specific capacity, configuration or specialist solution.
Explore the lifting shackles currently available below, or contact our team if you require a specific capacity, configuration or specialist solution.
Need help choosing the right lifting shackle?
Our team can advise on the best option for your lifting requirements.
Contact our team

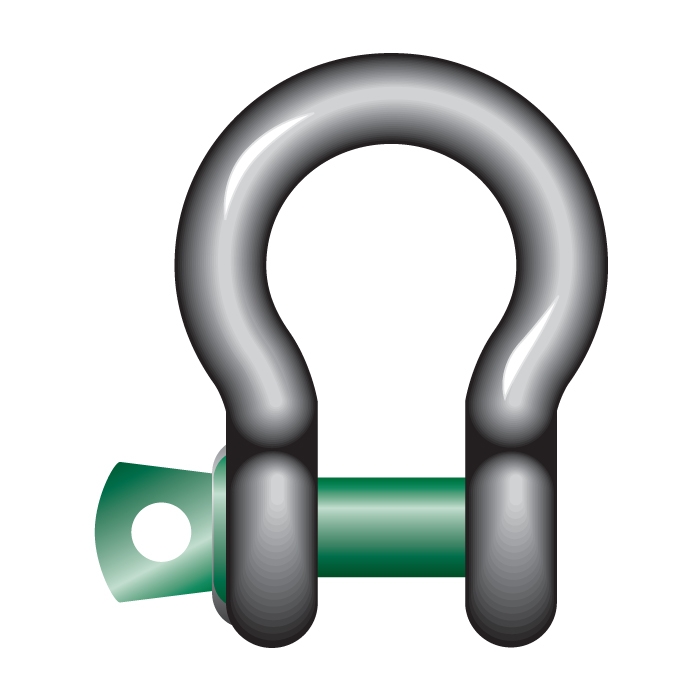

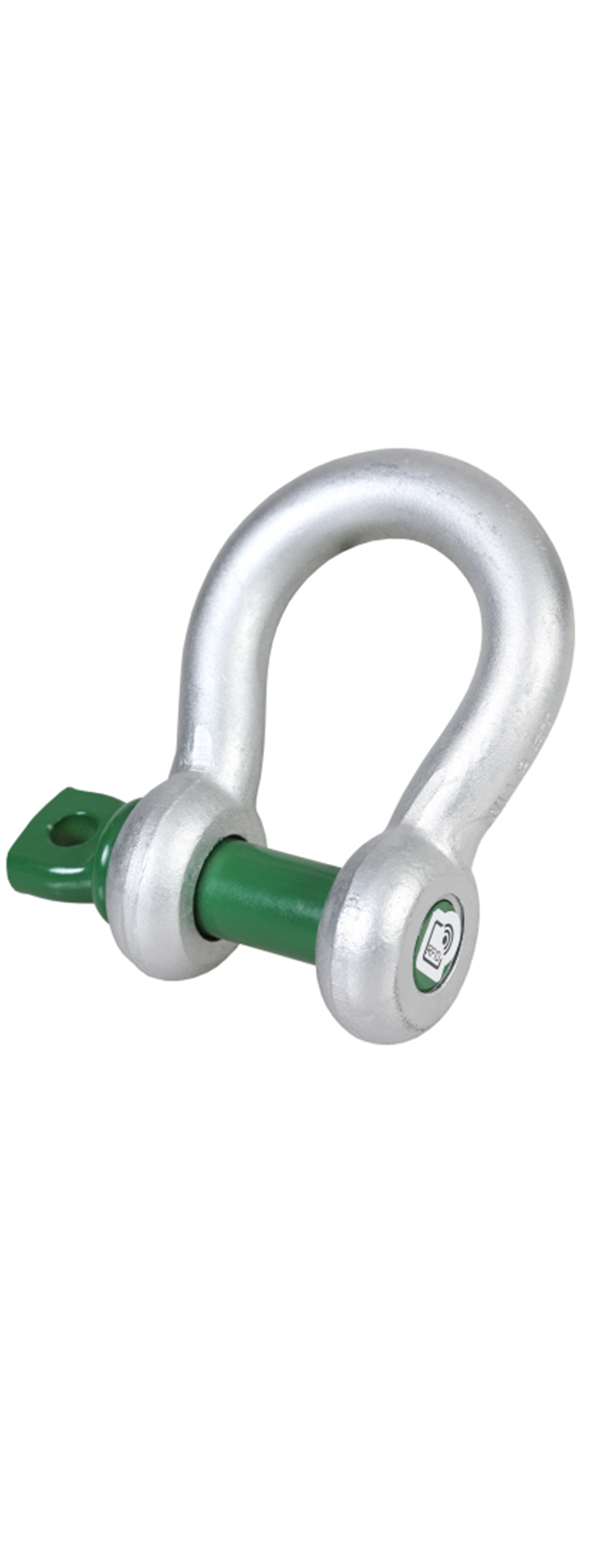

Green Pin® Bow Shackle SC – G-4161
The Green Pin® Bow Shackle SC (G-4161) is a standard bow shackle with a screw collar pin, designed for quick assembly and disassembly in lifting and rigging applications. Its bow design makes it suitable for both single-leg and multi-leg lifting systems, while the hot-dip galvanised finish provides long-term durability. The range covers working load limits from 0.33 t to 55 t.
- 0.33 t – 55 t working load limits
- Product code: G-4161
- Bow shackle with screw collar pin
- Quick assembly and disassembly
- Suitable for one-leg and multi-leg lifting systems
- Grade 6 high tensile steel
- Quenched and tempered construction
- Hot-dip galvanised finish
- Minimum breaking load of 6 × WLL
- Suitable for temperatures from -40°C to +200°C
Enquire hereView product details

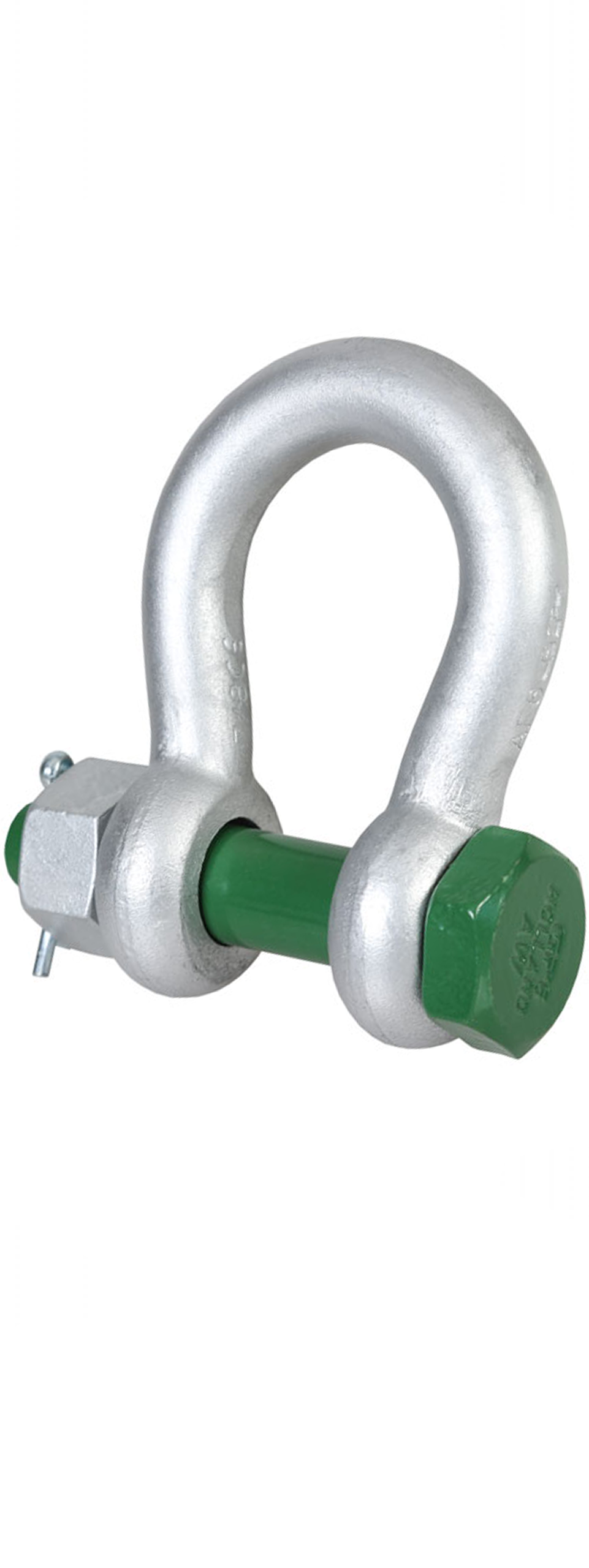

Green Pin® Bow Shackle BN – G-4163
The Green Pin® Bow Shackle BN (G-4163) is a standard bow shackle with a safety bolt, designed for lifting applications where additional security against accidental pin rotation is required. Its double-safety design combines a safety bolt with a cotter pin, while the bow shape makes it suitable for both one-leg and multi-leg lifting systems.
The shackle is manufactured from Grade 6 high tensile steel, quenched and tempered, with a hot-dip galvanised finish for long-term durability. It is available with working load limits from 0.5 t to 85 t.
- 0.5 t – 85 t working load limits
- Product code: G-4163
- Bow shackle with safety bolt
- Double safety with cotter pin and safety bolt
- Suitable for one-leg and multi-leg lifting systems
- Grade 6 high tensile steel
- Quenched and tempered construction
- Hot-dip galvanised finish
- Minimum breaking load of 6 × WLL
- Suitable for temperatures from -40°C to +200°C
- Manufactured to EN 13889
Enquire hereView product details

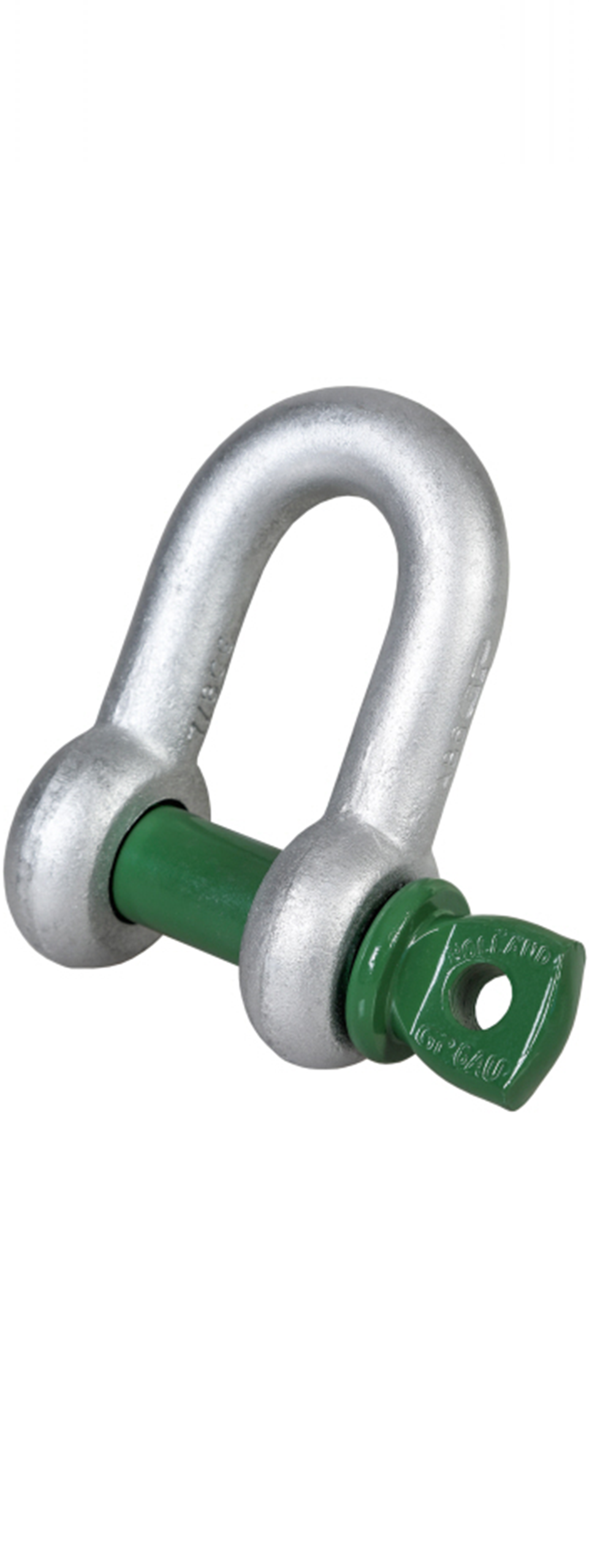

Green Pin® Dee Shackle SC – G-4151
The Green Pin® Dee Shackle SC (G-4151) is a standard dee shackle with a screw collar pin, designed for lifting applications where connections need to be assembled and disassembled regularly. Its screw pin allows quick assembly and removal, while the shackle's chambered design keeps the screw thread covered to help reduce wear on wire rope and other connected components.
The dee shackle is suitable for one-leg lifting systems only and is available with working load limits from 0.33 t to 55 t. It is manufactured from Grade 6 high tensile steel and hot-dip galvanised for long-term durability.
- 0.33 t – 55 t working load limits
- Product code: G-4151
- Dee shackle with screw collar pin
- Quick assembly and disassembly
- Suitable for one-leg lifting systems only
- Grade 6 high tensile steel
- Quenched and tempered construction
- Hot-dip galvanised finish
- Chambered thread helps reduce wear on wire rope
- Minimum breaking load of 6 × WLL
- Suitable for temperatures from -40°C to +200°C
Enquire hereView product details

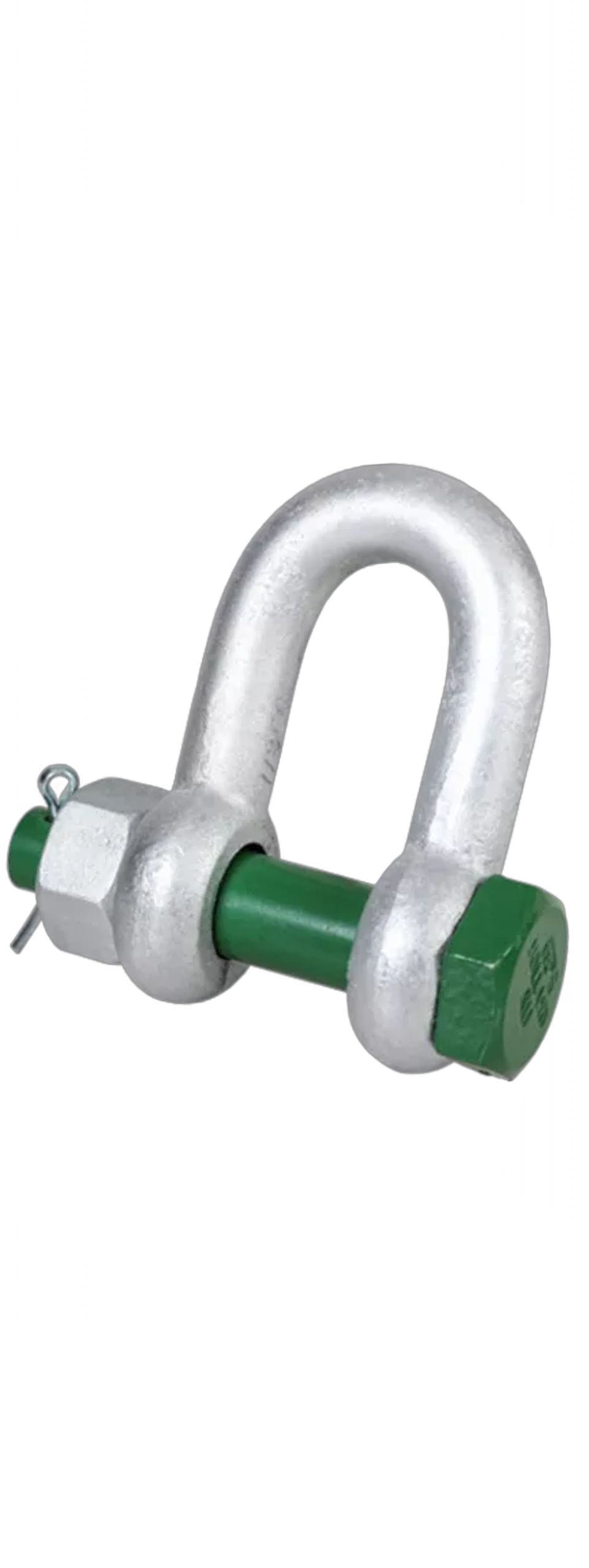

Green Pin® Dee Shackle BN – G-4153
The Green Pin® Dee Shackle BN (G-4153) is a standard dee shackle with a safety bolt, designed for lifting applications where additional security against accidental pin rotation is required. Its double-safety design combines a safety bolt with a split pin to help prevent accidental unscrewing.
The shackle is suitable for one-leg lifting systems only and is available with working load limits from 2 t to 85 t. Manufactured from Grade 6 high tensile steel and quenched and tempered, it features a hot-dip galvanised finish for long-term durability. The range also conforms to a wide range of certifications, including DNV and ABS.
- 2 t – 85 t working load limits
- Product code: G-4153
- Dee shackle with safety bolt
- Double safety with split pin and safety bolt
- Suitable for one-leg lifting systems only
- Grade 6 high tensile steel
- Quenched and tempered construction
- Hot-dip galvanised finish
- Minimum breaking load of 6 × WLL
- Suitable for temperatures from -40°C to +200°C
- Conforms to EN 13889 and ASME B30.26
Enquire hereView product details
Download technical information
Access product datasheets and technical documents for our chain hoists.
View downloads.
Not sure which lifting shackle you need?
Our team can help you select the right chain hoist for your application and lifting requirements.
Contact us.Stock and delivery
We hold a range of chain hoists in stock for quick delivery across the UK.
Speak to our teamCAN'T FIND WHAT
YOU'RE LOOKING FOR?
We have access to hundreds of additional lifting products from leading manufacturers that aren't currently listed on our website. If you need a different capacity, configuration or specialist solution, our team can help.
ABOUT LIFTING SHACKLES
What is a Lifting Shackle?
A lifting shackle is a removable lifting accessory used to connect loads to chains, wire rope, slings and other lifting equipment. It consists of a shackle body and removable pin, providing a secure connection that can be assembled and removed as required.
Lifting shackles are widely used across manufacturing, construction, engineering, offshore, maintenance and material handling applications. Bow and dee shackles are available in different designs and capacities, allowing the appropriate shackle to be selected for the lifting arrangement.
Different pin configurations are suited to different applications. Screw pin shackles are generally used where connections are regularly assembled and disassembled, while safety bolt and fixed-nut shackles provide additional security for longer-term applications or where vibration and pin rotation may be concerns. Green Pin
Carl Stahl Evita supplies lifting shackles from established manufacturers, with a growing range of Green Pin® products alongside additional shackle types and manufacturers being added to our range. Our team can help you select a suitable shackle based on your working load limit, lifting configuration and application.
Discuss which Hoist is right for youLifting shackles are widely used across manufacturing, construction, engineering, offshore, maintenance and material handling applications. Bow and dee shackles are available in different designs and capacities, allowing the appropriate shackle to be selected for the lifting arrangement.
Different pin configurations are suited to different applications. Screw pin shackles are generally used where connections are regularly assembled and disassembled, while safety bolt and fixed-nut shackles provide additional security for longer-term applications or where vibration and pin rotation may be concerns. Green Pin
Carl Stahl Evita supplies lifting shackles from established manufacturers, with a growing range of Green Pin® products alongside additional shackle types and manufacturers being added to our range. Our team can help you select a suitable shackle based on your working load limit, lifting configuration and application.
CHAIN HOIST SELECTION
Choosing the Right Chain Hoist
Working Load Limit
Choose a shackle with a suitable working load limit (WLL) for the load being lifted. The required capacity should take into account the load weight, lifting configuration and any applicable loading conditions.
Shackle Type
Consider whether a bow or dee shackle is most suitable. Dee shackles are generally used for one-leg systems, while bow shackles provide more space for connections and are commonly used with multi-leg lifting systems.
Pin Configuration
Choose the pin arrangement based on how the shackle will be used. Screw pin shackles are suited to applications where connections are regularly assembled and removed, while safety bolt and fixed-nut shackles provide greater security for longer-term applications or where pin rotation may occur.
Application & Environment
Consider the lifting arrangement, frequency of use and operating environment when selecting a shackle. Dynamic loading, vibration, temperature and specialist requirements may require a specific shackle design or configuration.
TYPES OF LIFTING SHACKLES
Bow, Dee and Specialist Shackles
Lifting shackles are available in different shapes and pin configurations to suit the way they are connected and used. Bow and dee shackles are the two main types used for lifting, with each offering different connection characteristics.
Bow shackles have a wider body that provides additional room for connecting multiple lifting components, making them commonly suited to multi-leg lifting systems. Dee shackles have a narrower profile and are mainly used for one-leg lifting systems.
The pin configuration should also be selected according to the application. Screw pin shackles are generally used where connections need to be assembled and removed regularly, while safety bolt and fixed-nut shackles provide additional security for long-term applications, dynamic loads or situations where there is a risk of the pin rotating.
Specialist shackles are also available for applications requiring particular load capacities, dimensions, materials or operating conditions
Discuss with our ExpertsBow shackles have a wider body that provides additional room for connecting multiple lifting components, making them commonly suited to multi-leg lifting systems. Dee shackles have a narrower profile and are mainly used for one-leg lifting systems.
The pin configuration should also be selected according to the application. Screw pin shackles are generally used where connections need to be assembled and removed regularly, while safety bolt and fixed-nut shackles provide additional security for long-term applications, dynamic loads or situations where there is a risk of the pin rotating.
Specialist shackles are also available for applications requiring particular load capacities, dimensions, materials or operating conditions
APPLICATIONS
Typical Uses for Lifting Shackles
Lifting shackles are used across a wide range of industries to connect lifting equipment, secure loads and create removable connections between chains, slings, wire rope and other lifting components. Their range of sizes, configurations and pin types makes them suitable for both general lifting and more demanding applications.
Manufacturing
Construction

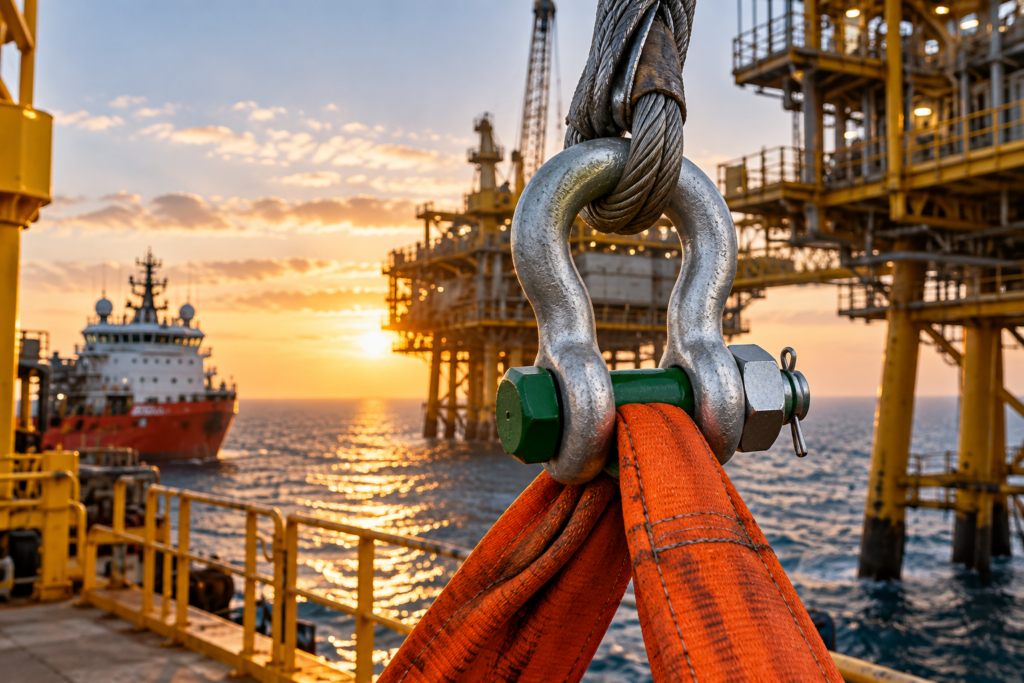

Marine & Offshore
Material Handling
CHAIN HOIST FAQ'S
Frequently Asked Questions
Find answers to common questions about lifting shackles, working load limits, shackle types and selecting the right equipment for your application.
1. What is a lifting shackle used for?
A lifting shackle provides a removable connection between lifting equipment and a load. Shackles can be used to connect chains, wire rope, slings and other lifting accessories during lifting and handling operations.
2. What is the difference between a bow shackle and a dee shackle?
Bow shackles have a wider, rounded body that provides more space for connecting multiple lifting components. Dee shackles have a narrower profile and are generally used for one-leg lifting systems.
3. What is the difference between a screw pin and safety bolt shackle?
Screw pin shackles are designed for applications where the connection needs to be assembled and removed regularly. Safety bolt shackles use a bolt, nut and securing pin to provide additional security against accidental pin rotation or unscrewing.
4. How do I choose the right working load limit for a shackle?
The shackle’s working load limit (WLL) must be suitable for the load and lifting configuration. The number of lifting legs, loading direction and application conditions should all be considered when selecting a shackle.
5. Can lifting shackles be used for multi-leg lifting?
Yes, suitable bow shackles can be used in multi-leg lifting systems where their capacity and configuration are appropriate. The shackle must be selected according to the lifting arrangement and manufacturer’s specified WLL.
6. Are lifting shackles suitable for offshore applications?
Yes. Specialist lifting shackles are available for demanding marine and offshore applications, with certain designs offering certifications and specifications suited to these environments.
7. What should I check before using a lifting shackle?
Check the shackle for visible damage, deformation, excessive wear, corrosion and signs of damage to the body or pin. Confirm that the WLL and identification markings are legible and that the shackle is correctly assembled before use.
8. Do lifting shackles need to be inspected?
Yes. Lifting shackles should be included within the appropriate inspection and examination arrangements for lifting equipment and accessories. Inspection requirements will depend on how the equipment is used and the applicable regulations and procedures.
